Process optimization with KSMART
Process optimization with KSMART
A world market and technology leader in 3D solder paste and component inspection, Koh Young not only offers innovative process control systems, but also takes care of the optimization of the entire process with the KSMART-Tools.
KSmart Applications
The KSMART-Tools are web-based applications, that can be accessed through any browser without installations.

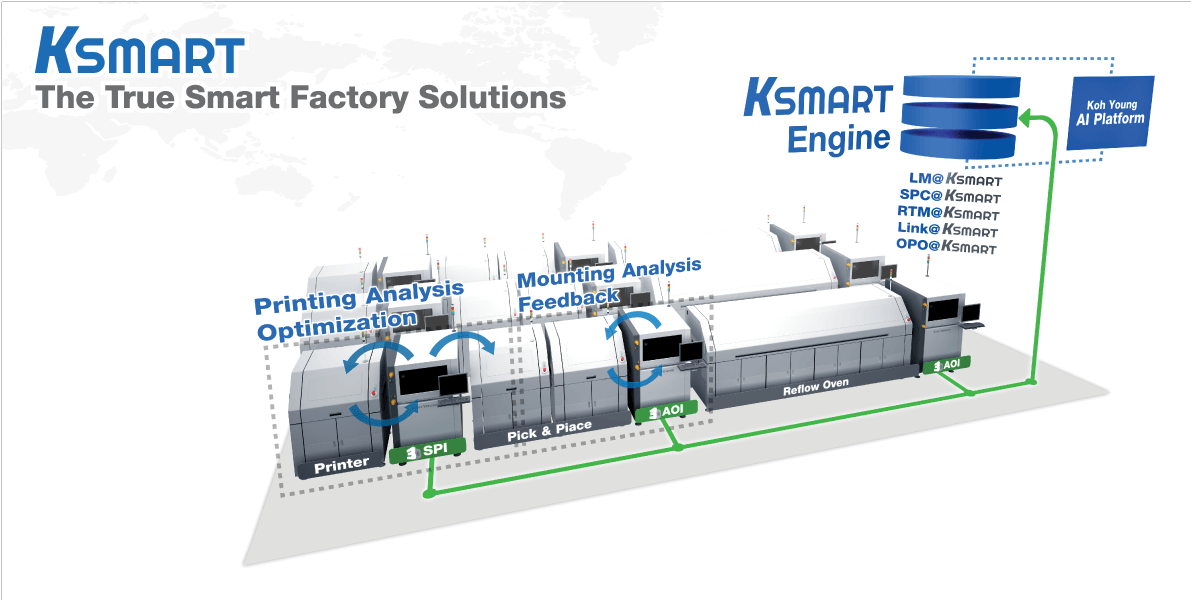

With the KSMART-server, on which, among other things, the status of all Koh Young systems and the status of the production with detailed error reports can be checked and managed, you can draw conclusions about your entire production and regulate the process in a targeted manner and optimize it.
-
Process Analyzer
With statistical process control, you can see the status of your production at a glance: The most recently inspected boards are displayed over time and marked according to their rating (good/not good/etc.). Various analyses can be used to trace errors down to the board and component.
-
Link Analysis
Link Analysis shows the quality of your production at a glance: the program links the information from AOI and SPI and displays the information on your solder paste depots and components in an overview.
-
Monitoring
Real time monitoring informs about the production status in real time and provides key performance indicators such as Cpk and Cmk, the top 5 errors and the average values of all measurement performed by Koh Young systems.
-
Offline Programming Optimizer
With Offline Programming Optimizer job files can be adjusted at any time in parallel with line operation using historical data.
-
Library Manager
The Library Manager allows you administrative access to all Koh Young libraries and job files. Create coverage reports or use the revision management to manage your inspection parameters.
KSMART TOOLS
The advantages
01
Web-based
The KSMART server and thus also the KSMART tools can be accessed via a browser from any location, an installation is not necessary.
02
Interconnected
Machine and process data from all Koh Young inspection systems in the production converge in the KSMART tools, allowing the operator to gain deep insight into the status of production.
03
A good overview
All data and analysis results are presented at a glance in overviews or in intuitively understandable diagrams.
04
Detailed
All measurement data is saved with the associated 3D image. Errors can thus be traced down to the last detail.
