Pin Inspection
3D Pin Inspection with Koh Young
Due to their height, pins pose a challenge for the classic 3D AOI; in most cases, the height of the pins simply cannot be fully captured in 3D. With the Pin Inspector, Koh Young offers a solution optimized for the requirements and challenges of pin inspection to measure pins completely in 3D with the precision known from AOI.

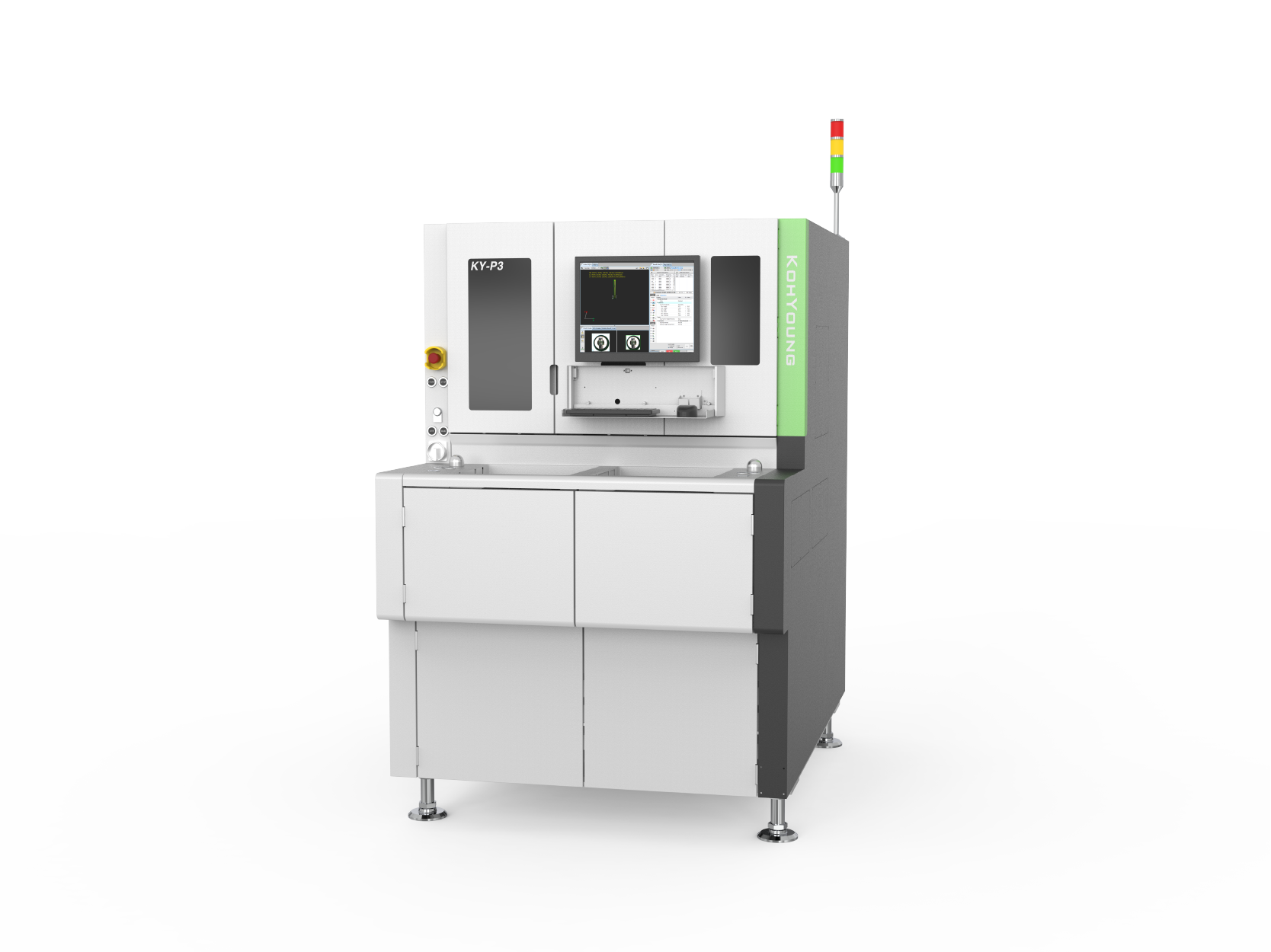

Pin Inspector
The Pin Inspector combines innovative vision algorithms with Koh Young's advanced 3D measurement technology.
Pin Inspector
Pin Inspector
-
Proven measurement technology
- Koh Young's patented measuring technology, optimized for the special challenges of pin inspection: Complete 3D detection of fine and narrow structures
- Even tall shadows have no influence on the measurement result
- Sophisticated inspection algorithms guarantee the pseudo defect rate, find the real defects and eliminate defect slippage
-
Smart features
- Fast and intuitive programming using CAD data
- Time-saving auto-programming function based on artificial intelligence
- Can be integrated into KSMART tools: Comprehensive, centralized process control and optimization
-
True 3D inspektion of pins
- Single pins, press-fit and fork pins
- Inspection for pin height, missing pins, offsets, shoulder height incl. absolute height of the pin, coplanarity, spacing etc.
- FOI (Final Optical Inspection)
-
The right system for every requirement
- From offline systems with manual front loading to fully automated inline systems: Koh Young offers the right solution for every requirement
- Sophisticated handling mechanism with versatile carrier solutions for automatic processing of a wide variety of products
