Handling solutions by YJ LINK

We offer a wide portfolio of products for the transfer, transport and intermediate buffering of printed circuit boards. We develop smart solutions to automate your production.

Handling

Process automation

A high degree of flexibility and reliability form the basis of our handling solutions. The modern design and simple, intuitive operation via touch screen round off the overall picture.

Inside view of the vacuum loader

Vaccum Loader

NG Conveyor

  • Flexible to use

    • Dual- or multi magazin solutions available
    • Applicable as stand-alone solution or for line automation

  • Process optimization

    • Fast, reliable and fully automated PCB handling: With our solutions you can completely automate your production line.
    • Process optimization through automatic good/bad sorting

  • Adherence to the cycle time

    With our PCB handling solutions, boards can be buffered, traffic jams on the line can be prevented and bad boards can be sorted out directly.

Our handling solutions for an automated production

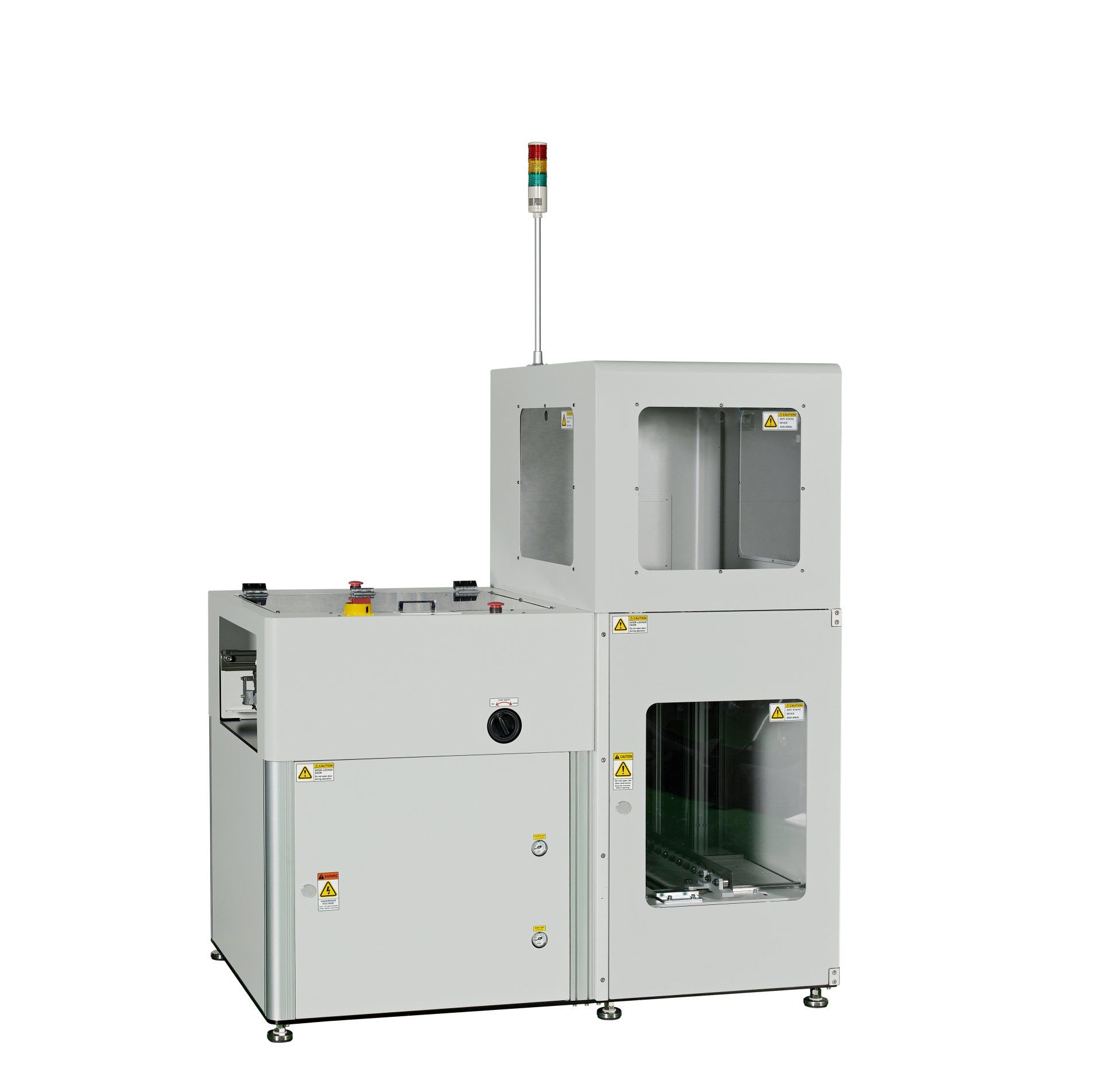

product image of YJ Links single loader
product image of YJ Links all type unloader

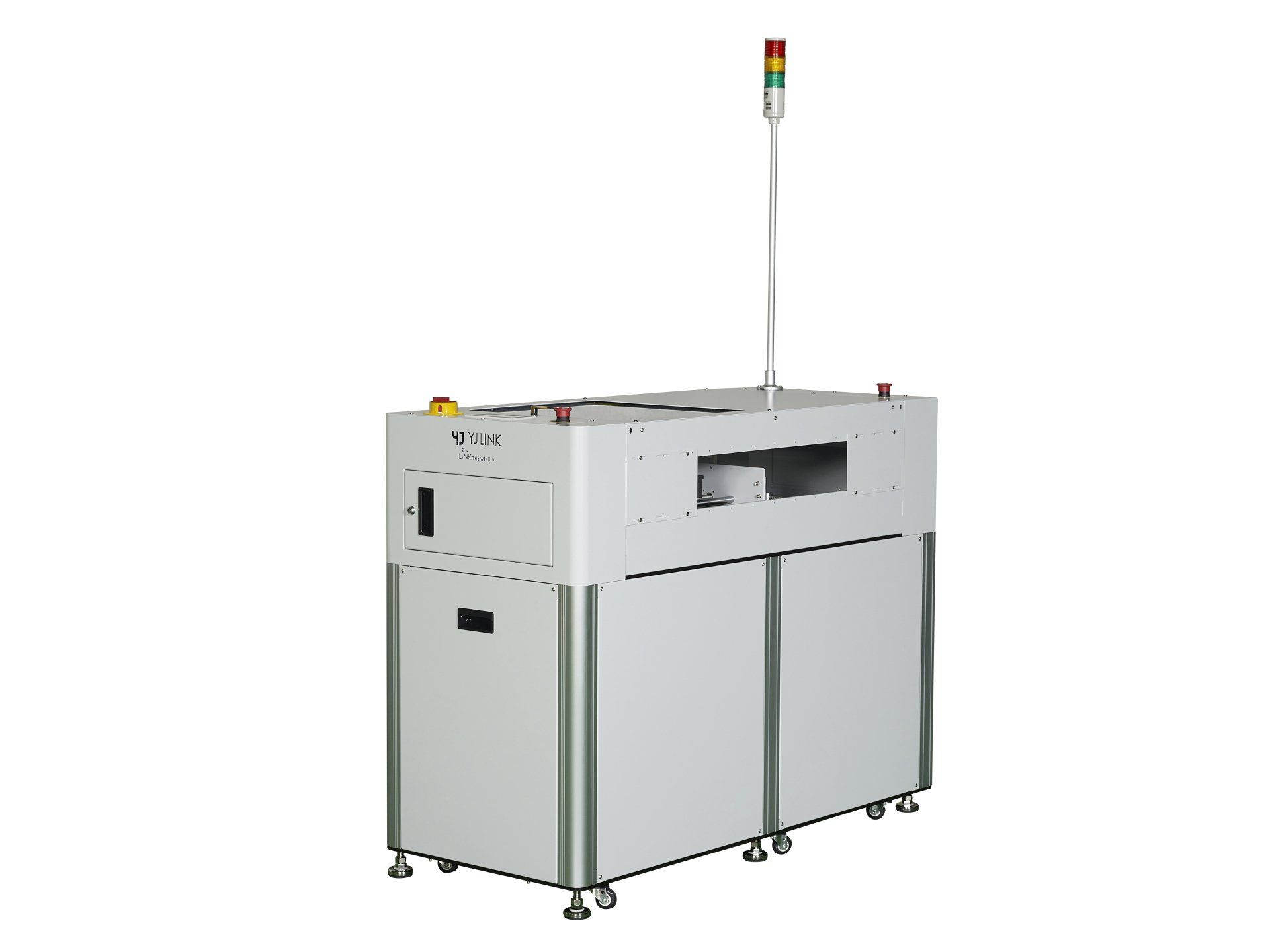

product image of YJ Links shuttle conveyor

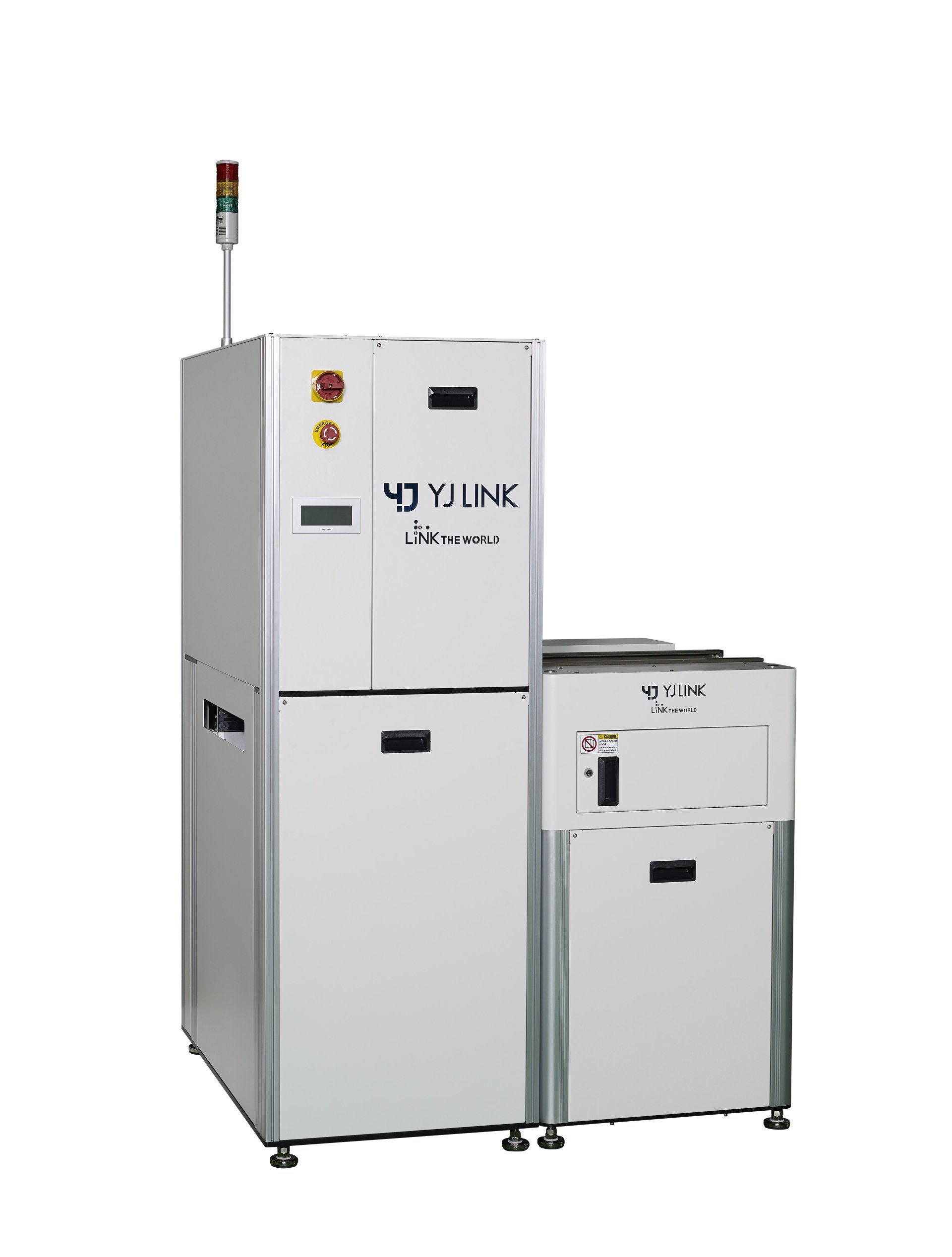

product image of YJ Links tower rack

Loader

Whether multi-, dual-, or single magazine – we have the right loader for PCBs from your production line. Contact us for a personal consultation.

Our solutions for optimal automatic unloading of PCBs:


Dual- or Multi-Magazine

Loading systems allow the automatic loading of printed circuit boards from a magazine in the production line.

Combination loader- and unloader

The function of the magazine loader and unloader is combined in this system in an extremely efficient and space-saving way. Very cost-effective stand-alone solutions for process systems can be realized with a combi system.

Unloader

Whether multi-, dual-, or single magazine – we have the right unloader for PCBs from your production line. Contact us for a personal consultation.

Our solutions for optimal automatic unloading of PCBs:


Dual- or Multi-Magazine

Unloaders enable the automatic unloading of PCBs from the production line into a magazine. Placed after an inspection system, the systems can be used for automatic good/bad sorting.

Combination loader- and unloader

The function of the magazine loader and unloader is combined in this system in an extremely efficient and space-saving way. Very cost-effective stand-alone solutions for process systems can be realized with a combi system.

Conveyor

For the transfer, transport and buffering of the curcuit boards in your production line, we offer a wide product portfolio. In addition to standard conveyor in different widths, we have a lot of special solutions:


Conveyor

For the transport of PBCs between different steps of the process, we offer conveyor belts in several widths.

Flip station

With the turning station, printed circuit boards can be turned vertically (top down) by 180° in a production line fully automatically.

Buffer

Get a little room to breathe – with a buffer! To prevent machine downtime, bad boards can be moved to a buffer. Traffic jam on the production line can also be avoided.


Magazine Buffer

The magazine buffer enables the buffering in and out of entire magazines in one production line. The buffering is based on the FIFI/LIFO principle.

LiFo-Buffer

With this system, printed circuit boards can be buffered using the LiFo (Last In-First Out) principle.


FiFo-Buffer

With this system, printed circuit boards can be buffered using the FiFo (First In-First Out) principle.
